The features of the electric bike lithium battery:

1. Safe: The li-ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat.
2. Environment-friendly: Accredited with CE, without any hazardous and noxious substances.
3. Small in volume and light in weight: The li-ion electric bike battery is about 1/2 the volume and 1/3 the weight of the lead-acid battery.
4. Steady performance: high power output,1C continuous,3C pulse for normal cells and 20 C for special design. low self-discharge rate, less than 3% monthly.
5. Long cycle life: over 1000 cycles with capacity staying at 80% min.
6. Lower average price: per year: the average price per year is less than the lead-acid battery.
7. No memory effect: always ready for charge and use, with no need to charge after a full discharge.

Battery volts	Battery capacity	Battery Cell	Rated Discharge Current
36v	10.4ah	2600mah	20A
36v	11.6ah	2900mah	20A
36v	12.8ah	3200mah	20A
36v	14ah	3500mah	20A
48v	7.8ah	2600mah	20A
48v	8.7ah	2900mah	20A

Volume

The sart moel rear rack battery has its own unique shape deisgn, which has special streamline and looks light and handy. It has small weight and is easy to be taken.

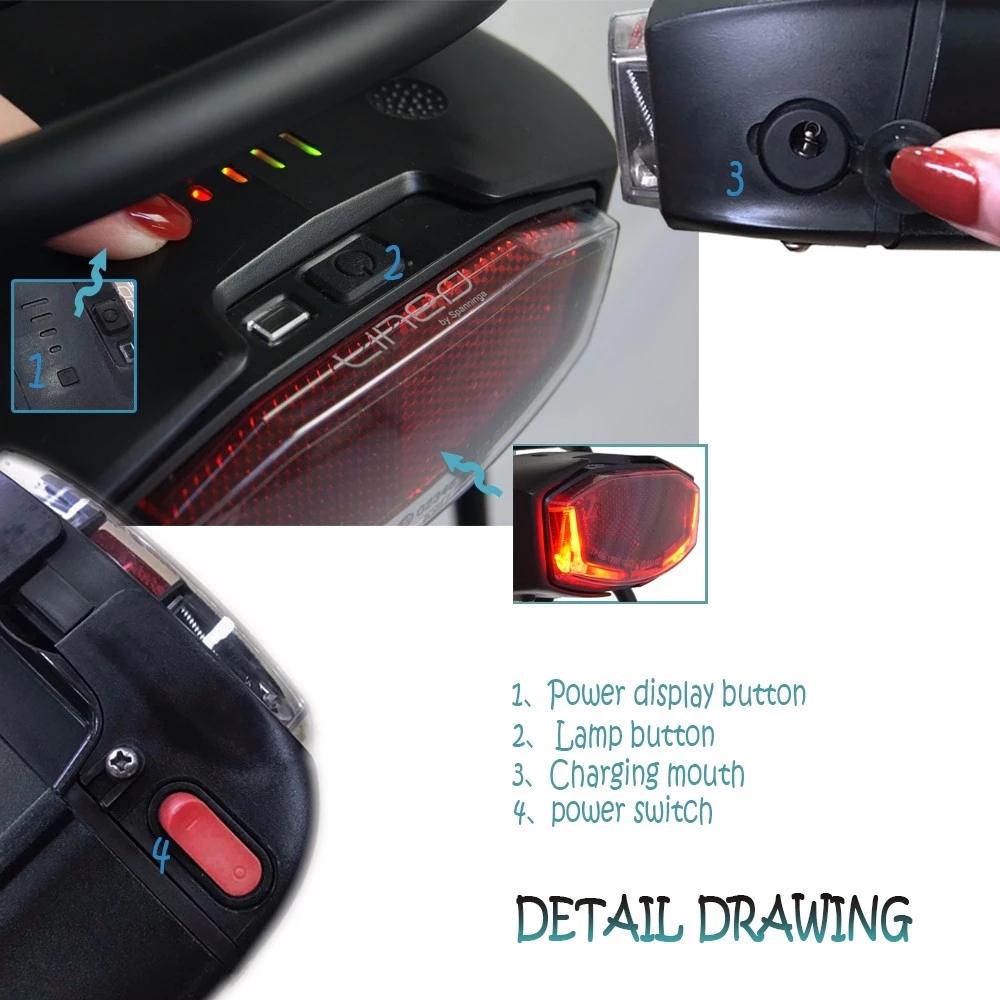

Buttons and Mouth

1. power display button

2. Lamp button

3. charging mouth

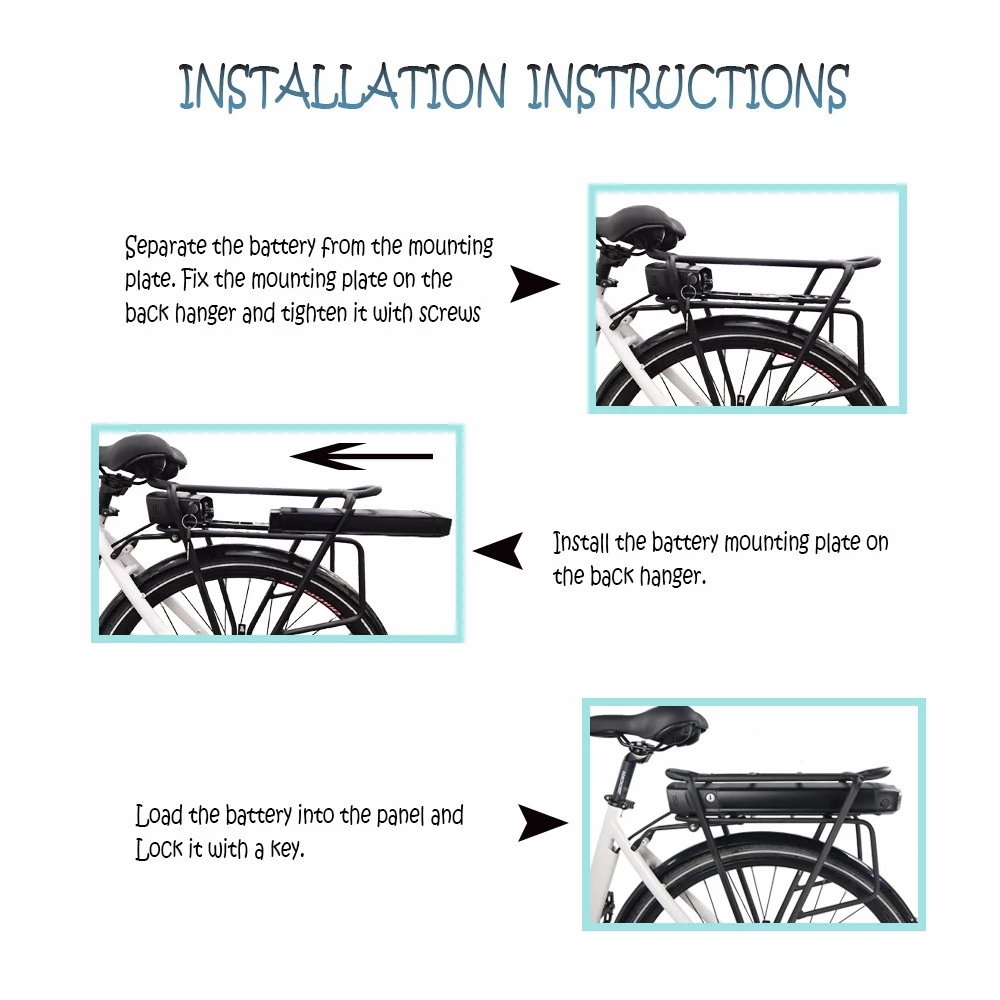

Installation

First, use your tools and screws to install the rear rack to the rear wheel. Then push the battery forward to saddle direction. Last, connect the battery with controller.

No memory effect

always ready for charge and use, with no need to charge after a full discharge.
